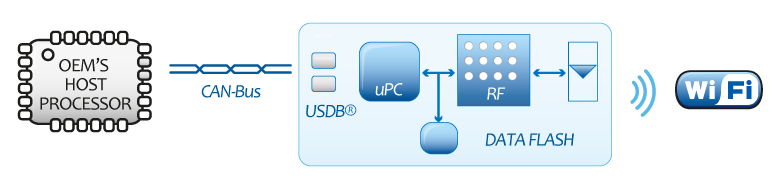

Compact-CS-CAN is a plug&play stackable Wi-Fi module with CAN-bus interface without transceiver.

All data read from CAN Bus network will be available on Wi-Fi in a open format XML or CVS, for a better integration into customer own software like mobile and web applications.

Compact-CS-CAN can be used as CAN Analyzer in Wi-Fi.

It has to be used in association with the customer CAN transceiver and its capable drive signals up to High-Speed mode.

It’s characterized by very small dimensions (42 x 23 x 5 mm), a ultra low power on which a TCP / IP module, a microprocessor and an antenna are incorporated. It integrates a RF transceiver with a power amplifier, a frequency reference and an antenna in-hardware. It can process and transmit selected CAN-Bus signals through Wi-Fi in a secure and plug-and-play way.

Compact-CS-CAN can be easily integrated on the vehicular electronic system. The connection to the CAN-Bus interface is made up soldering the module directly on the customer electronic device.

Moreover, user does not have to develope any software both on board and on the device host.

Compact-CS-CAN supports ad-hoc and infrastructure network types (using commercial access points).

Our solutions apply encryption modes to protect communication and use an innovative method to avoid latency and errors typical to Wi-Fi networks.


Compact-CS-CAN has to be used throw an existent CAN transceiver, soldering TX and RX pins.

It is also equipped with two digital I/O pins, that are configurables as digital Input or Output.


Messages of CAN BUS network are trasmitted on Wi-Fi and they can be manage in XML, CSV from which the native format can be rebuilt.

Compact-S-CAN modules are suitable for automotive applications that expect one-way communication exclusively with monitoring functions. The Compact-S-CAN is an ideal solution for OEMs and System Integrators that have a limited Wi-Fi expertise. In fact the Compact-S-CAN dramatically reduces development time and eliminates the burden of testing and certification, allowing customers to exclusively focus on core product.

Data Interface XML, CSV RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
Electrical Compatibility TTL Compatible 3.3V / 5V
WLAN Functions Ad-hoc and infrastructure modes Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 4-10V (typical 5V)
Dimensions 42 x 23 x 5 mm Consumption RX = 56mA, TX = 130mA  (@4V)

Compact-S-CAN can be configured through the Compact Ready Go configurator provided by Wiicom. With the configurator is possible to configure desidered Wi-Fi settings and select a maximum of 14 CAN-Bus signals to receive.

car_tabletCompact-S-CAN is provided in bundle with a customizable widget-based dashboard software. Available widgets are typical automotive gauges and can be positioned into the dashboard in a drag&drop way. Drag&Drop Dashboard is able to visualize a set of CAN-Bus signals with custom widgets directly chosen by the user. With Drag&Drop Dashboard, OEMs and System Integrators will be able to create an ideal monitoring application for their own vehicles. Drag&Drop Dashboard is available on PC/OSX/Linux version and on mobile (iOS and Android) version.
