802.11 b/g/n Wi-Fi OEMs Module, Client/Server Type, CAN, Digital I/O, Analog Input

Ordering code: XCWIFI-A800-00C0 [add_to_cart sku=XCWIFI-A800-00C0]

Ordering code: XCWIFI-0800-00C0 [add_to_cart sku=XCWIFI-A800-00C0]

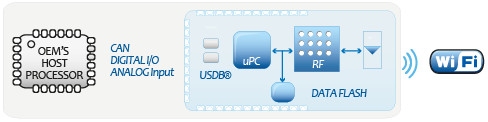

XCWIFI-CAN is a Wi-Fi embedded module that interfaces CAN BUS and up to 8 Digital I/O channels.

The XCWIFI-CAN is a plug&play Wi-Fi module and it is ready to transfer data from the fieldbus to Wi-Fi – and vice versa – in direct mode.

The module is an IEEE 802.11bgn device that directly provides a wireless interface for data transfer and control of equipments.

It is a complete and fully certified module that offers a quick, easy and cost effective solution to OEMs to enable Wi-Fi connectivity into their systems.


XCWIFI-CAN is a client/server type Wi-Fi embedded module.

This means that it is able to autonomously connect to a server, also public, and communicate with it. It can simulate a wire cutting between two devices if used with another XCWIFI-CAN module. It integrates WLAN protocol and configuration functionality to make a fully WLAN solution.

It permits ad hoc and infrastructure mode to create its own wi-fi network or to connect to an existent access point.
The second one allows the module to create a direct connection to another one; the second allows the module to connect to an existing wi-fi network.


The XCWIFI-CAN modules are immediately ready to be used. Thanks to Wiicom configurator software, available on Wiicom website, user can define all Wi-Fi network settings.

There’s no need to develope or modify any software on the host board.

Data Interface XML or CSV up to 1 Mbps (without overhead) RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
Electrical Interface
  • 1 x CAN with Schmitt Trigger Input 3.3V CMOS Logical Level
  • 8 x Digital I/O channels: 3.3V (5V tollerant)
  • 6 x Analog Input channels: 0-3.3V, 10 bit ADC
Electrical Compatibility TTL Compatible 3.3V / 5V
WLAN Functions Ad-hoc and infrastructure modes Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 4 - 10 Vdc (typical 5V)
Dimensions 46 x 25,4 x 4 mm (single side SMT) Consumption RX = 56mA, TX = 150mA  (@5V)

  • Compliant to 802.11b/g and single stream 802.11n
  • Ad-hoc and infrastructure operation modes support
  • WPA/WPA2-PSK and WEP security modes support
  • TCP protocol support
  • 7 configurable Client/Server sockets
  • Small size
