802.11 b/g/n Wi-Fi boxed module, CAN Analyzer, trasmitter CAN Bus to Wi-Fi, CAN 2.0 high speed (H-L), Client/Server type, led Wi-Fi flashing, Reset button, CAN Bus transceiver

Ordering Code: PWR-F-S03-B [add_to_cart sku=PWR-F-S03-B]

Ordering Code: PWR-F-S03-B9 [add_to_cart sku=PWR-F-S03-B9]

Ordering Code: PWR-E-S03-B [add_to_cart sku=PWR-E-S03-B]

Ordering Code: PWR-E-S03-B9 [add_to_cart sku=PWR-E-S03-B9]

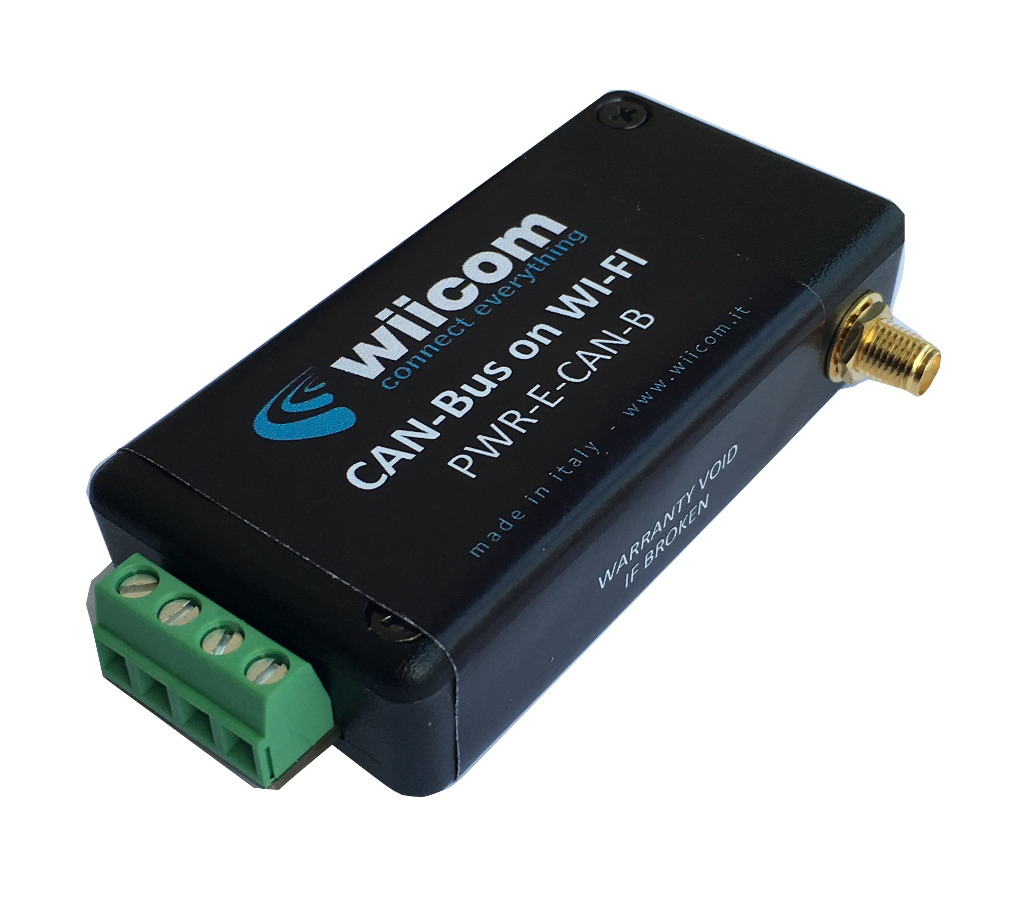

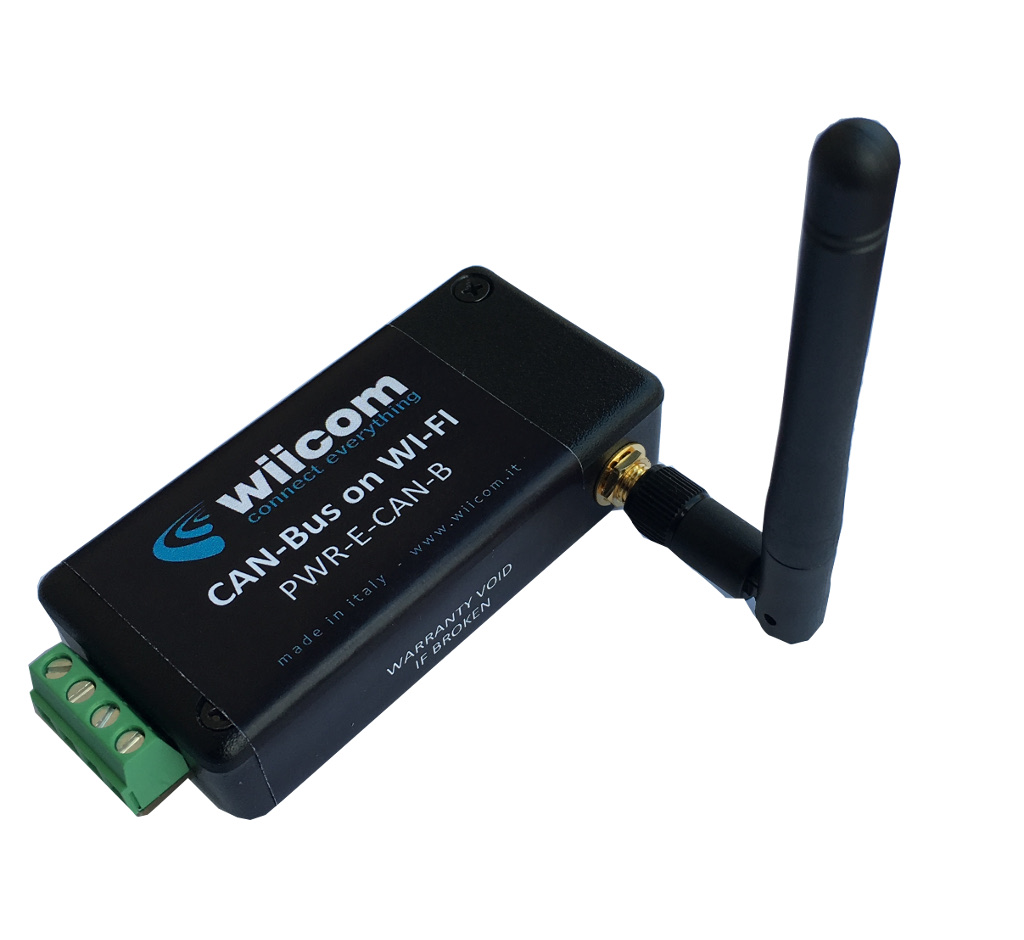

PWR-X-CAN-Bx is a CAN Bus to Wi-Fi converter.

It is a plug-and-play Wi-Fi boxed module. PWR-X-CAN-Bx is a client / server type Wi-Fi module: this means that it is able to autonomously connect to a server, also public, and communicate with it.

All data read from CAN Bus network will be available on Wi-Fi in a open format XML or CSV, for a better integration into customer own software like mobile and web applications.PWR-X-CAN-Bx can be used as CAN Analyzer on Wi-Fi.

In other words Wiicom brings CAN Bus on Wi Fi in a easy, secure and immediate way.In order to enable communications V2XPWR-X-CAN-CS supports both connection-type ad-hoc and infrastructure. The first is highly suited to applications Vehicle to Vehicle (V2V) or Vehicle to Mobile (V2M), while the second is able to manage communications Vehicle-to-Infrastructure (V2I).Like other Compact modules it permits ad hoc mode and infrastructure operation mode.


Wiicom supplies a solution for the transceiver needs that combines powering and interfacing. PWR-X-CAN-Bx is equipped with a CAN transceiver to communicate with the host.

In addition it can ben supplied with a voltage between 7 and 28VDC, for an industrial and automotive use.


PWR-X-CAN-Bx client/server versions are able to connect directly to many servers, also with public ips, and start a communication with them. In addition they are able to make a connection with a Cloud service, like Wiicom Sense Cloud.


The PWR-X-CAN-Bx modules are immediately ready to be used. Thanks to Wiicom configurator software, available on wiicom website, user can define all Wi-Fi network settings.

There’s no need to develope or modify any software on the host board.

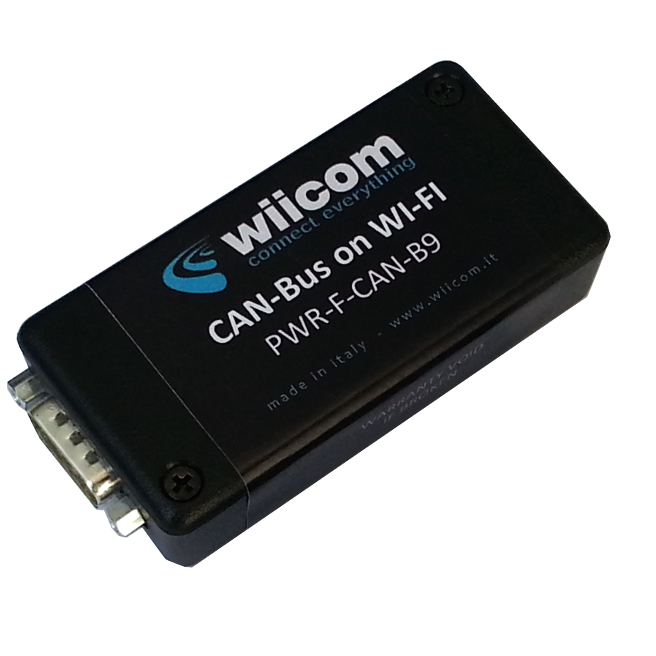

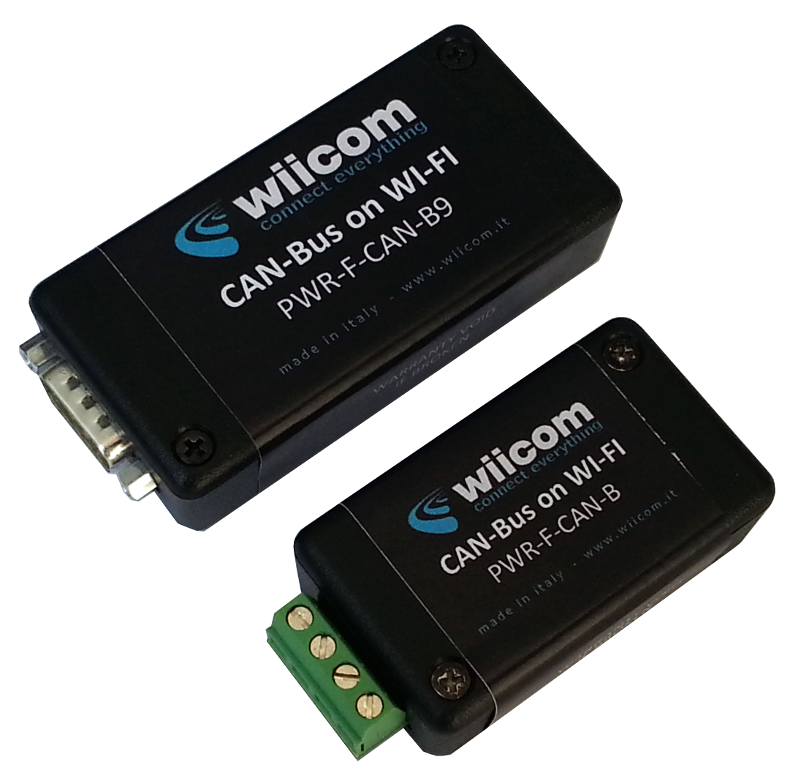

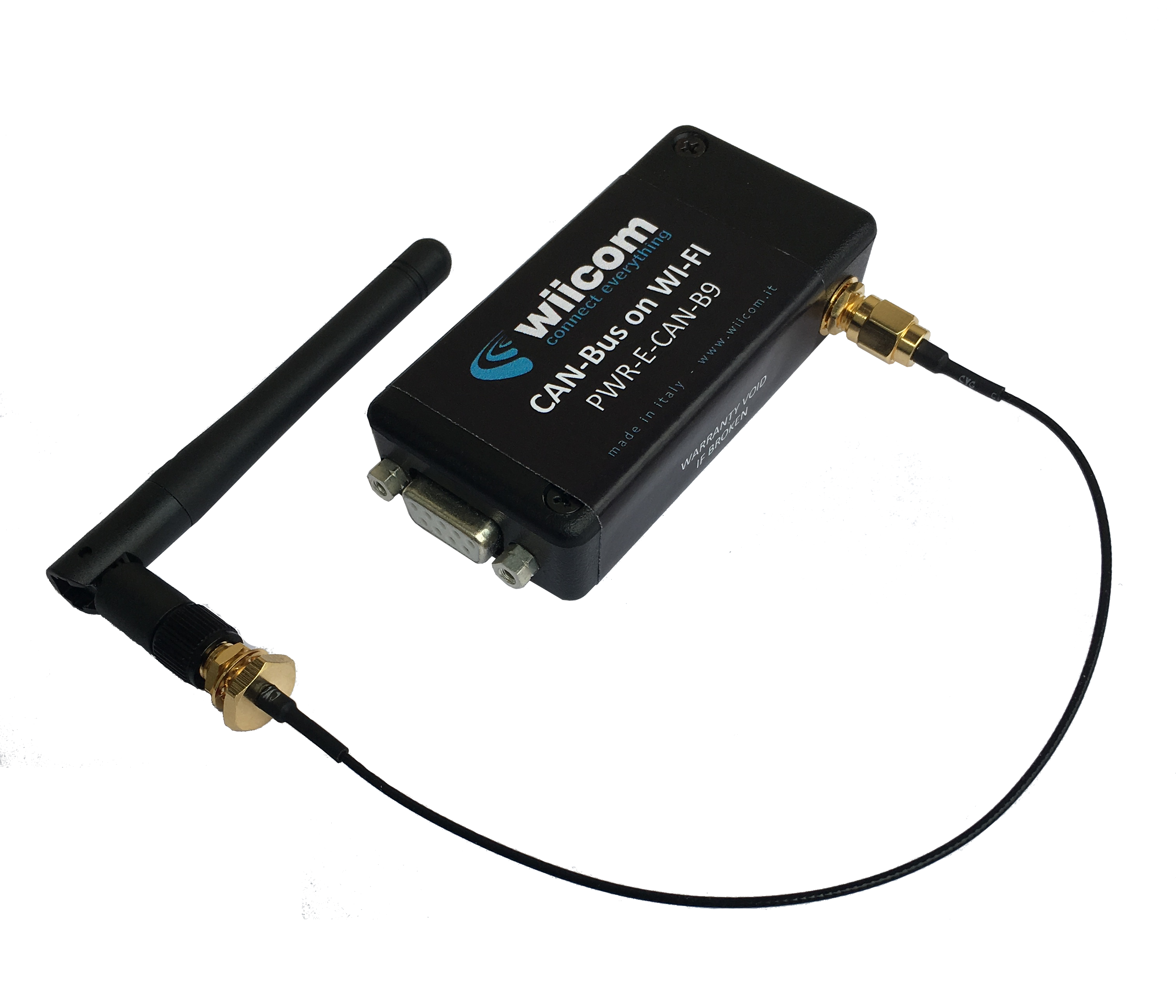

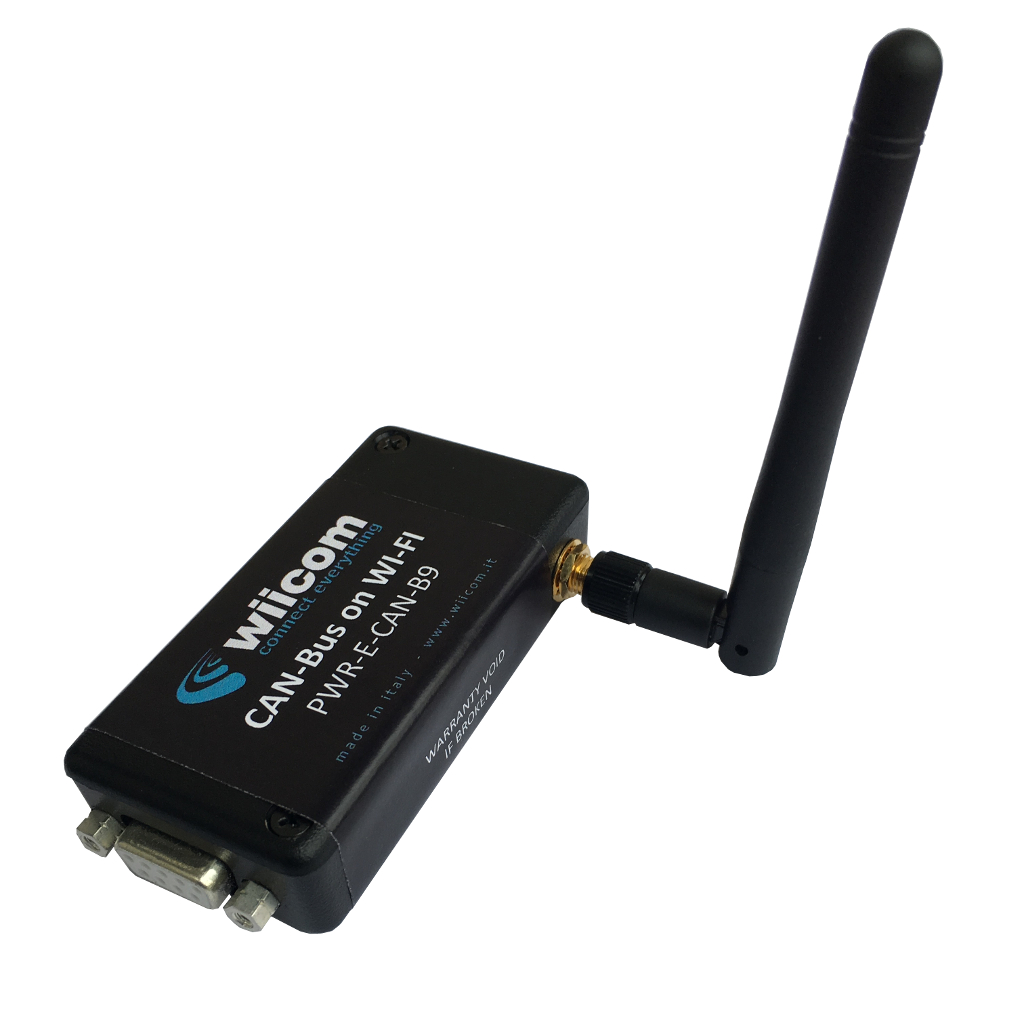

The PWR-X-CAN-B9 is the boxed module for CAN with  a DB9 male connector.

DB9 cables for connection and power for Wiicom boxed modules are available.
They are suitable for connecting Wiicom DB9 boxed modules to user’s devices.

Data Interface XML, CSV RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
Transceiver CAN 2.0 H-L Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 7 - 28 Vdc
Dimensions 68 x 34 x 20 mm (B), 84 x 40 x 20 mm (B9) Consumption RX = 56mA, TX = 160mA  (@7V)

  • Compliant to 802.11b/g and single stream 802.11n
  • Ad-hoc and infrastructure operation modes support
  • WPA/WPA2-PSK and WEP security modes support
  • TCP protocol support
  • 7 configurable Client/Server sockets
  • Equipped with CAN transceiver and power supply 5-28V
  • Small size
