802.11 b/g/n Wi-Fi boxed industrial modules, Converter 4Digital I/O, Client / Server type

Ordering Code: PWR-F-S05-BI (PWR-F-D4IO-BI) [add_to_cart sku=PWR-F-S05-BI]

Ordering Code: PWR-F-S05-BO (PWR-F-D4IO-BO) [add_to_cart sku=PWR-F-S05-BO]

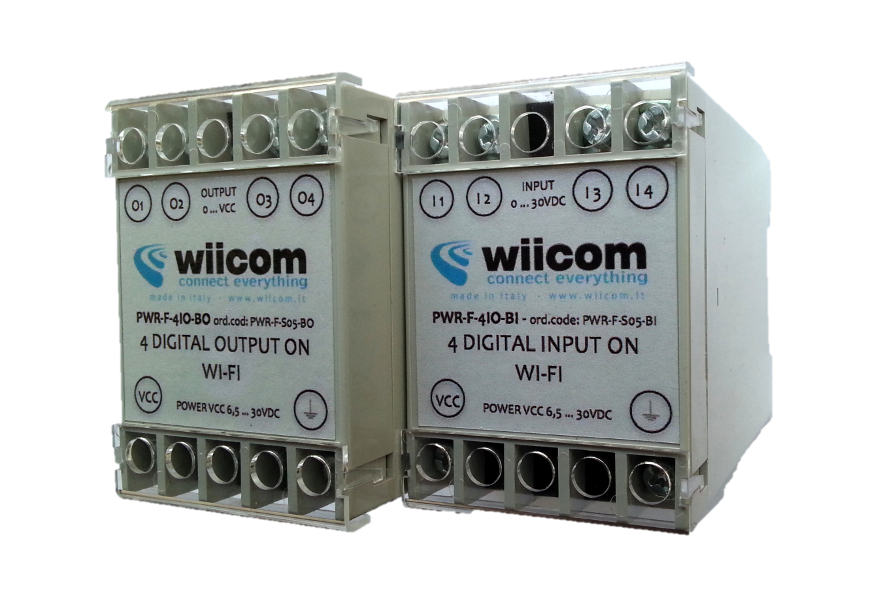

PWR-F-4DIO-BPWR-F-4DIO-Bx are converters from digital I/O to Wi-Fi and viceversa.

They are industrial Wi-Fi modules into a box on a DIN rail enclosure. The can be powered with a range between 6.5Vdc and 30Vdc.

PWR-F-4DIO-BI module is a converter from digital Inputs to Wi-Fi. Digital inputs can accept a Voltage between 0 and 30Vdc.

PWR-F-4DIO-BO module is a converter from Wi-Fi to digital Outputs. Digital outputs have an output range between 0 and 30Vcc.

Used both can be simulate the wire cutting between two devices, connected each other to digital I/O for monitoring and execution.

PWR-F-4DIO-Bx are Wi-Fi client / server modules. This means that they are able to autonomously connect to a server, also public, and communicate with it. The connection can be also ad-hoc and infrastructure with a standard Wi-Fi access point.


The PWR-F-4DIO-BI module (digital inputs) sends with TCP/IP a byte every 100ms or at every PIN value change. This byte contains the 4 PIN status.

In the same way, with PWR-F-4DIO-BO module (digital outputs) is possible to modify the status of 4 PIN by sending a byte that contains the required configuration to a TCP/IP socket.


PWR-F-4DIO-Bx modules are ready in few steps. Thanks to Wiicom CompactReadyGo configurator, user can set network parameters in an easy way.

It will not necessary to develope or modify any software, on the module or on the host machine.

Data Interface Coded transmission / reception (1 byte, coding 4 I/O) RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
WLAN Functions Ad-hoc and infrastructure modes Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps Supply Voltage 6.5 - 30 Vdc
802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps Digital inputs Voltage 0 - 30 Vdc
802.11b: 1, 2, 5.5, 11 Mbps Digital outputs Voltage 7 - 30 Vdc
Dimensions 50 x 72  x 104 mm (box DIN-rail enclosures) Consumption RX = 56mA, TX = 160mA  (@7V)

  • Compliant to 802.11b/g and single stream 802.11n
  • Ad-hoc and infrastructure operation modes support
  • WPA/WPA2-PSK and WEP security modes support
  • TCP protocol support
  • 7 configurable Client/Server sockets
  • Digital Input: from 0 to 30Vdc
  • Digital Output: from 6.5 to 30Vdc
  • Small size

screen-dashboardThe Drag&Drop Dashboard (read more ...) is available bundled software to implement a customizable dashboard. Available widgets are typical environmental or digital I/O gauges and they can be positioned into the dashboard in a drag&drop way. Drag&Drop Dashboard is able to visualize a set of signals with custom widgets directly chosen by the user. With Drag&Drop Dashboard, OEMs and System Integrators will be able to create your own custom application and software prototypes for the monitoring of their devices. Drag&Drop Dashboard is available on PC version and on mobile (iOS and Android) version.
