802.11 b/g/n Wi-Fi Module OEMs, Tx-Rx, Client/Server type, 2 Pin DIG I/O, Pin Reset

Ordering Code: CMP-R-S01-CS [add_to_cart sku=CMP-R-S01-CS]

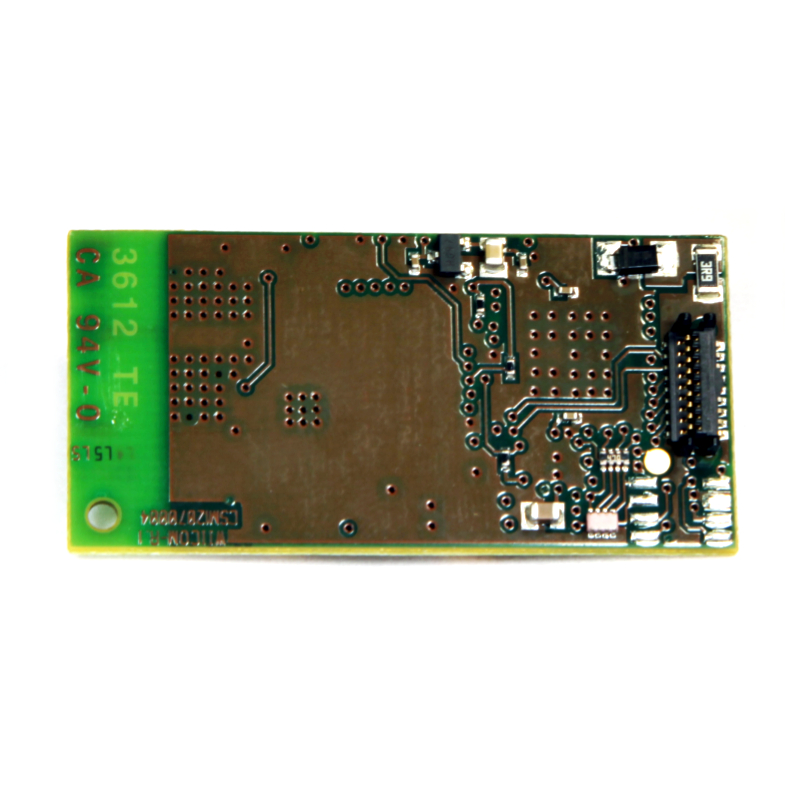

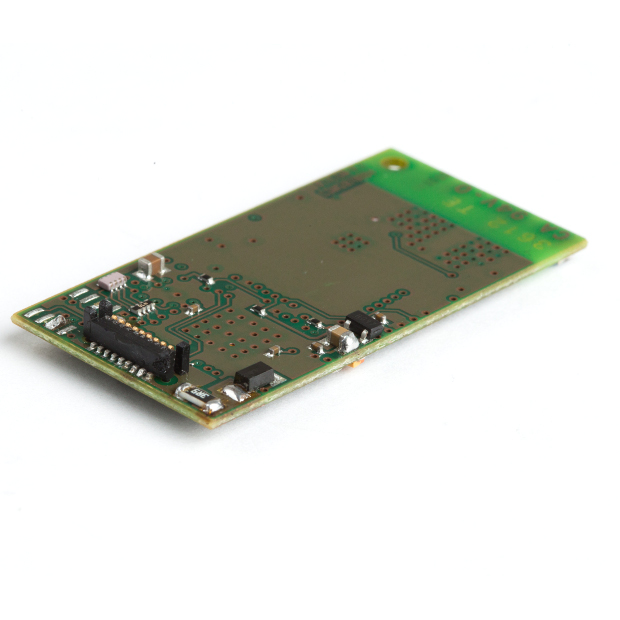

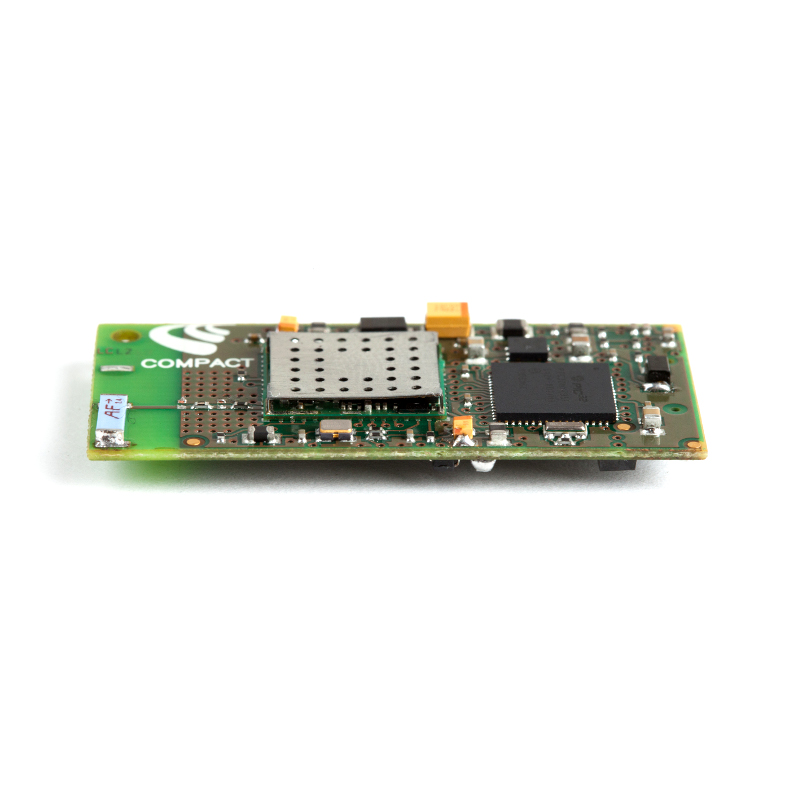

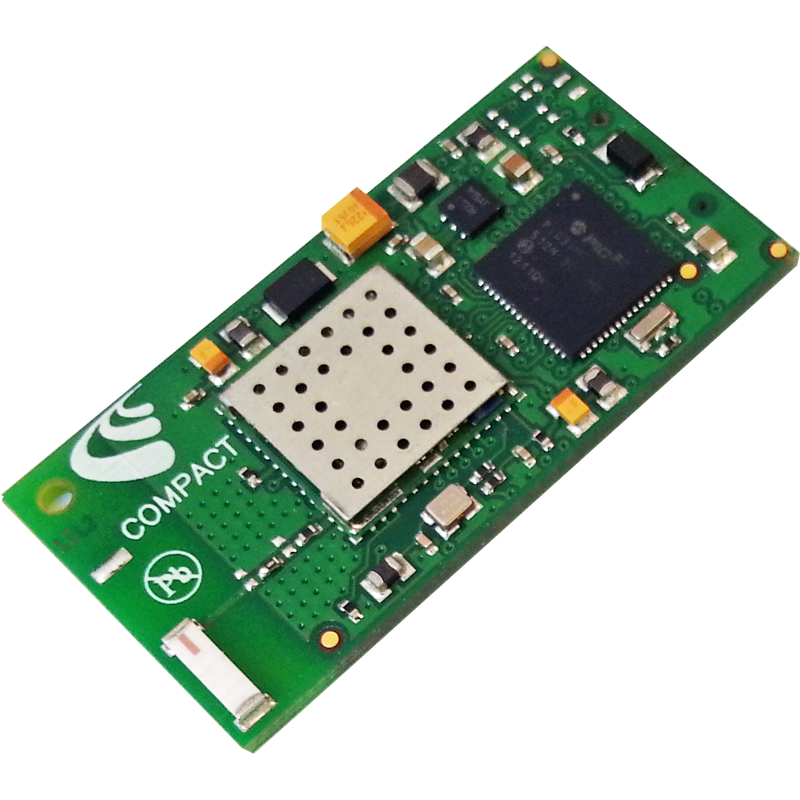

The Compact-CS-UART is plug-and-play stackable Wi-Fi module.  It is a serial UART to Wi-Fi Converter.

Compact-CS-UART is a client / server type Wi-Fi module.

This means that it is able to autonomously connect to a server, also public, and communicate with it. It can simulate a wire cutting between two devices used combined with a Compact-S-UART module.

Compact-CS-UART is a complete and fully certified module that offers a quick, easy and cost effective solution to OEMs to enable Wi-Fi connectivity into their systems.

The module is an IEEE 802.11bgn device that directly provides a wireless interface for data transfer and control of equipments. It integrates WLAN protocol and configuration functionality to make a fully WLAN solution.

It permits ad hoc and infrastructure mode to create itself a wi-fi network or to connect to an existent access point.

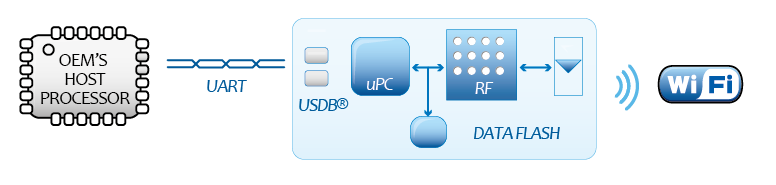

Compact-CS-UART makes a serial UART (RS232 without transceiver) connection and two digital I/O pins available, configurable as input or output, propagated directly to Wi-Fi.


The device is ready to be connected to a cloud solution, like Sense Cloud, to share data all over the world by the Internet.


The Compact-CS-UART modules are immediately ready to be used. Thanks to Wiicom configurator software, available on wiicom website, user can define all Wi-Fi network settings.

There’s no need to develope or modify any software on the host board.

Data Interface Direct transmission up to 2.5 Mbps (without overhead) RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
Electrical Compatibility  TTL Compatible 3.3V / 5V
WLAN Functions Ad-hoc and infrastructure modes Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 4 - 10 Vdc (typical 5V)
Dimensions 42 x 23 x 5 mm Consumption RX = 56mA, TX = 130mA  (@4V)

  • Compliant to 802.11b/g and single stream 802.11n
  • Host interface through USDB®
  • Ad-hoc and infrastructure operation modes support
  • WPA/WPA2-PSK and WEP security modes support
  • TCP protocol support
  • Power-saving management
  • 7 configurable server and client type sockets

Through simple accessories it's possible to evaluate the features and performance of all modules WIICOM Family Compact, linking them to various interfaces on board electrical devices for industrial use, handling analog signals, digital signals and the most common data bus.
Electrical Interface RS232 0-5V / 0-10V / 6-28V (with accessories) / 0-20mA / 4-20mA (with accessories)
Data Protocol MODBUS
Connectivity Wi-Fi is ready after few configuration steps using an intuitive PC-interface (available for Windows and Linux OS). The accessories currently available matching family of Compact modules are the following:

Strip Adapter 8-pin

The Strip Adapter 8-pin module is used to immediately connect the Compact-Family modules to customer's device. Strip 8-pin Vertical, 8-pin Horizontal and 8-pin with holes are available.

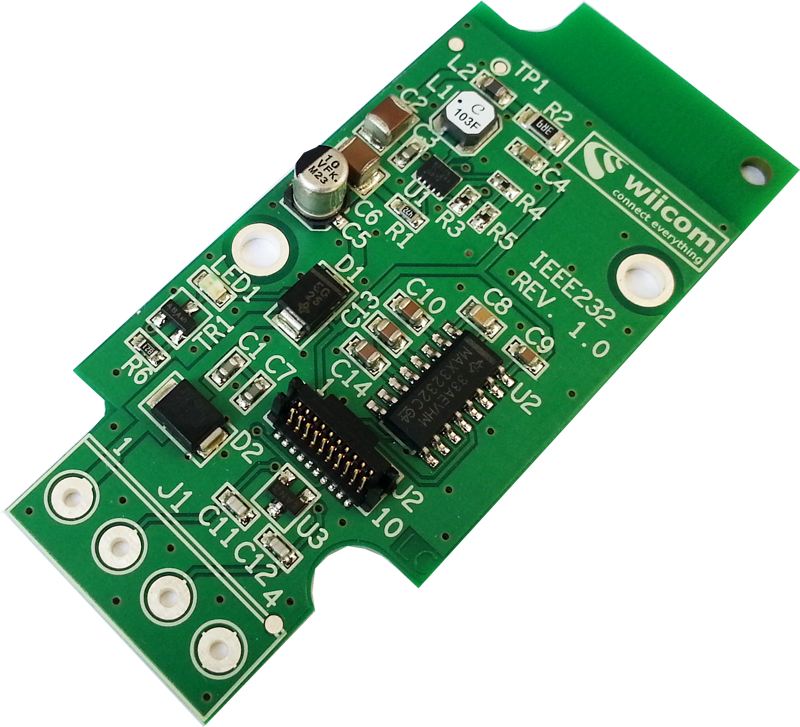

The PWR-F-RS232 board is used to transform the Compact-UART into an RS232 compatible Device.


screen-dashboardcar_tabletThe Drag&Drop Dashboard (read more ...) is available bundled software to implement a customizable dashboard. Available widgets are typical environmental and automotive gauges and can be positioned into the dashboard in a drag&drop way. Drag&Drop Dashboard is able to visualize a set of signals with custom widgets directly chosen by the user. With Drag&Drop Dashboard, OEMs and System Integrators will be able to create your own custom application that fits perfectly to create prototypes for the monitoring of their devices. Drag&Drop Dashboard is available on PC version and on mobile (iOS and Android) version.
