802.11 b/g/n Wi-Fi Module OEMs, Tx-Rx, Client / Server type, RS232 transceiver, led Wi-Fi flashing, Reset button, ABS box

Ordering Code: PWR-F-S02-B [add_to_cart sku=PWR-F-S02-B]

Ordering Code: PWR-F-S02-B9 [add_to_cart sku=PWR-F-S02-B9]

Ordering Code: PWR-E-S02-B [add_to_cart sku=PWR-E-S02-B]

Ordering Code: PWR-E-S02-B9 [add_to_cart sku=PWR-E-S02-B9]

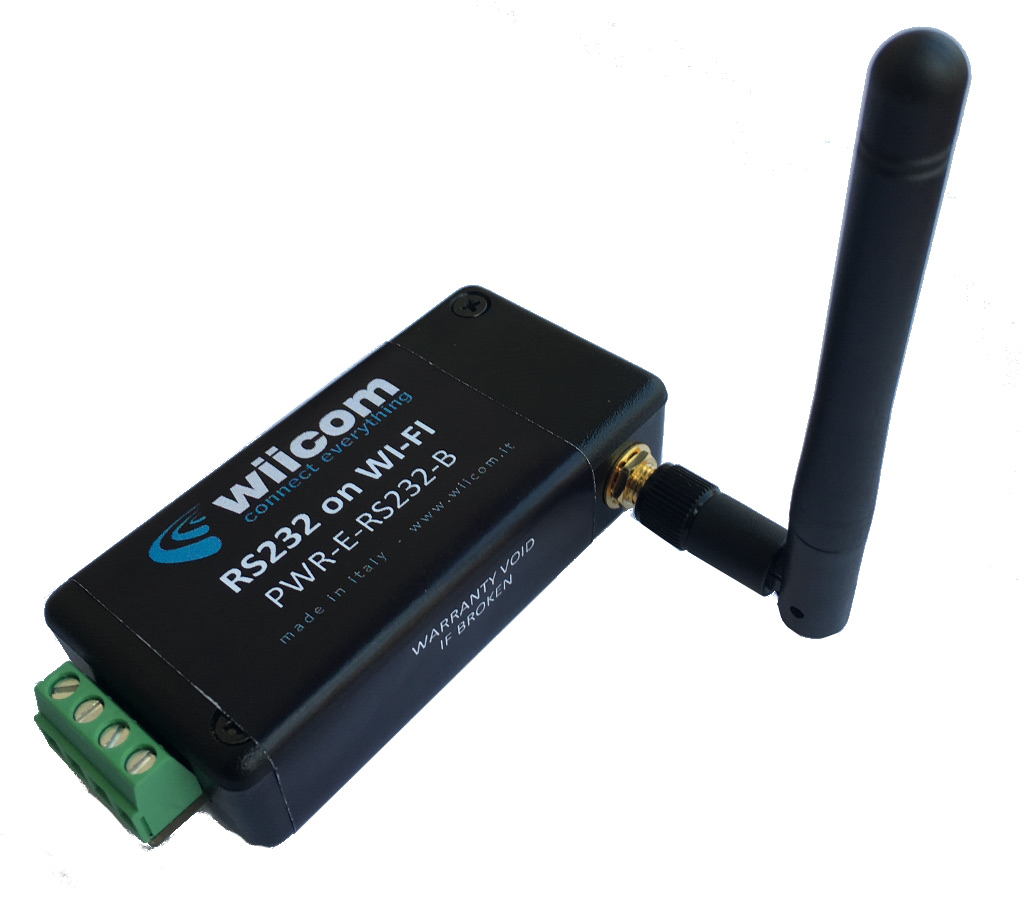

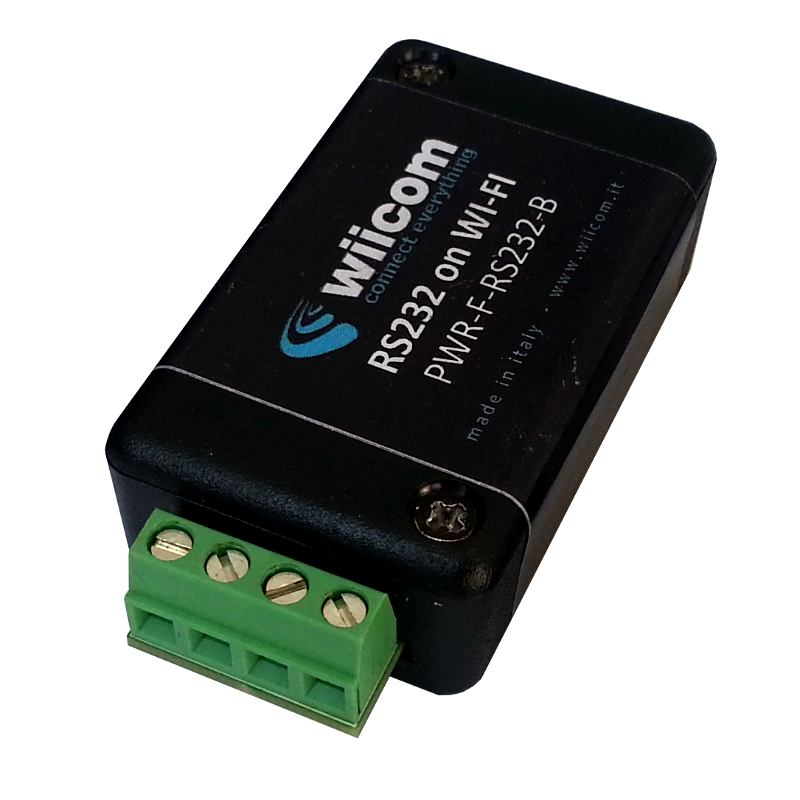

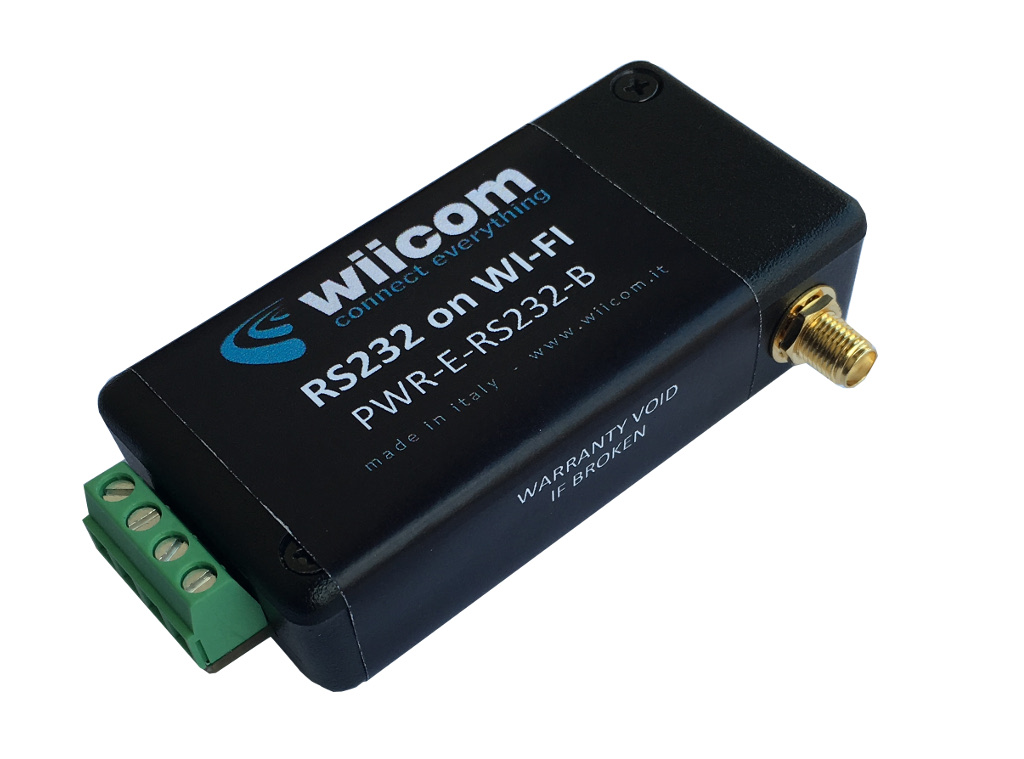

PWR-X-RS232-Bx is a RS232 to Wi-Fi converter. It is a plug-and-play Wi-Fi boxed module.

PWR-X-RS232-Bx is a client / server type Wi-Fi module: this means that it is able to autonomously connect to a server, also public, and communicate with it. It can simulate a wire cutting between two devices used combined with another PWR-X-RS232-Bx module.

Like other Wiicom’s modules it permits ad hoc mode and infrastructure operation mode.


Wiicom supplies a solution for the transceiver needs that combines powering and interfacing. PWR-X-RS232-Bx is equipped with a RS232 transceivers to communicate with the host.

In addition it can ben supplied with a voltage between 7 and 28VDC, for an industrial and all-day use.


PWR-X-RS232-Bx client/server versions are able to connect directly to many servers, also with public ips, and start a communication with them. In addition they are able to make a connection with a Cloud service, like Wiicom Sense Cloud.


The PWR-X-RS232-Bx modules are immediately ready to be used. Thanks to Wiicom configurator software, available on Wiicom website, user can define all Wi-Fi network settings.

There’s no need to develop or modify any software on the host board.

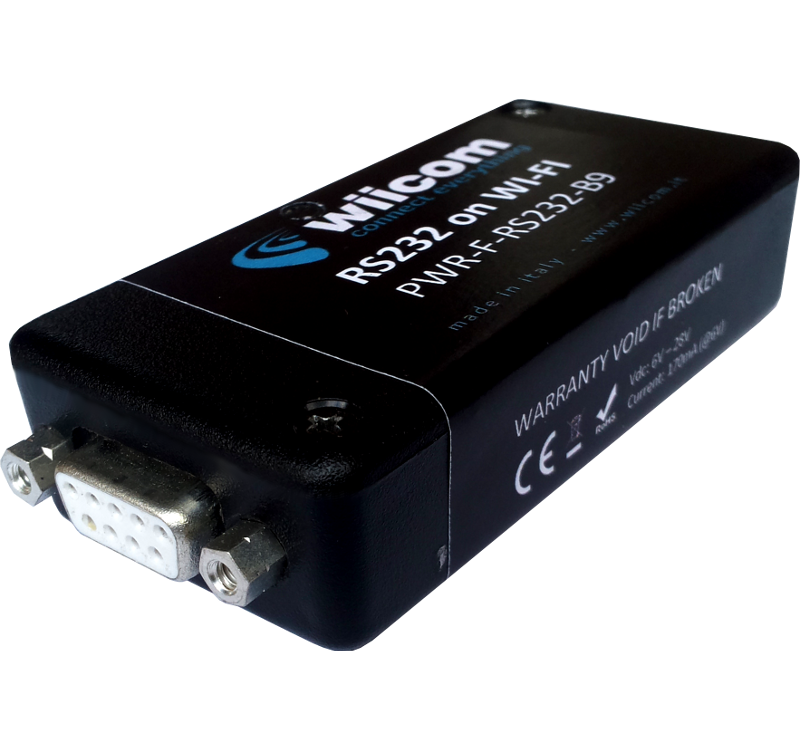

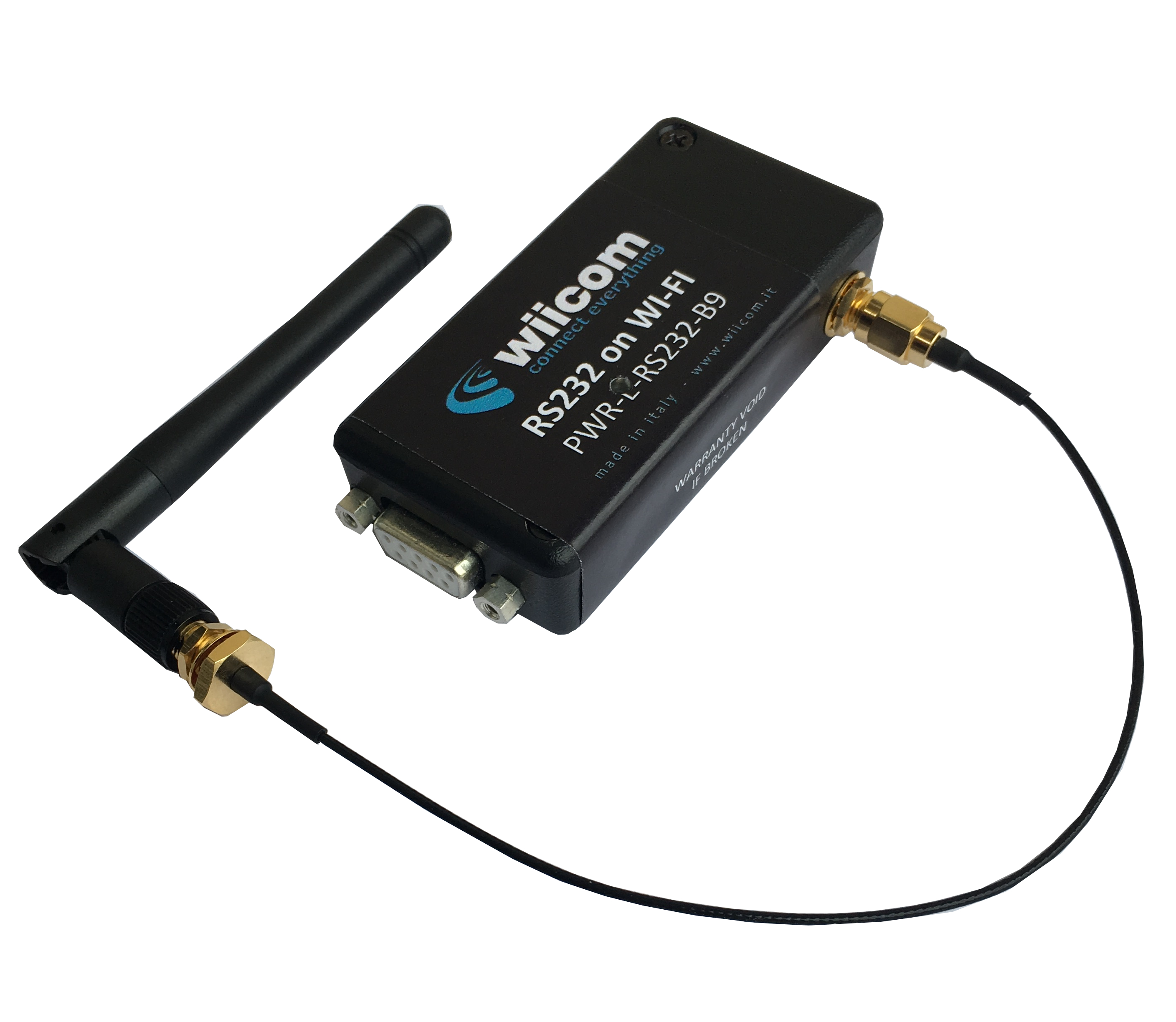

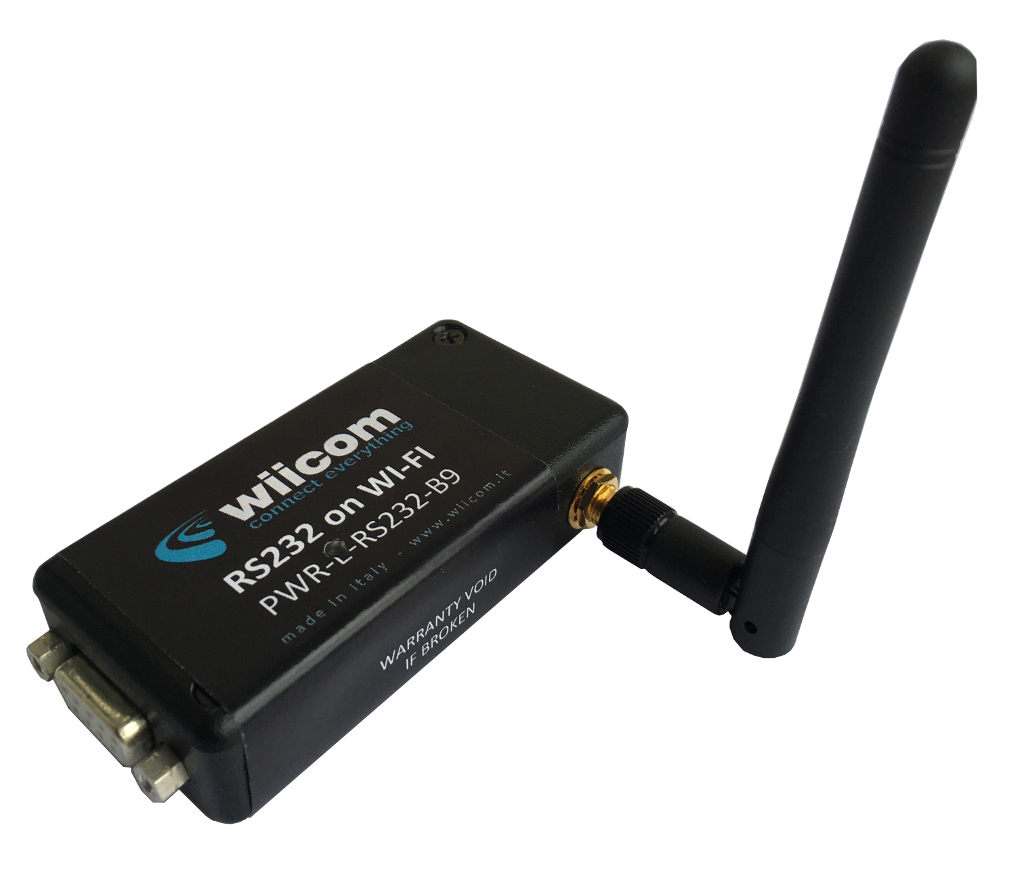

The PWR-X-RS232-B9 is the boxed module for RS232  with  a DB9 female connector.

DB9 cables for connection and power for Wiicom boxed modules are available.
They are suitable for connecting Wiicom DB9 boxed modules to user’s devices.

Data Interface Direct transmission up to 2.5 Mbps (without overhead) RF Frequency Band 2.412 - 2.484 GHz (integrated antenna)
Electrical Compatibility TTL Compatible 5V, +- 15KV ESD
WLAN Functions Ad-hoc and infrastructure modes Security Protocol WEP, WPA and WPA2-PSK
Network Standard Support IEEE 802.11b/g single stream n Network Protocols TCP, IPv4, ARP, ICMP
RF Output Power 15-17 dBm Operating Temperature -40 to + 85 °C
RF Data Rates 802.11n: 6.5, 13, 19.5, 26, 39, 52, 58.5, 65 Mbps; 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps; 802.11b: 1, 2, 5.5, 11 Mbps Supply Voltage 7 - 28 Vdc
Dimensions 68 x 34 x 20 mm (B), 84 x 40 x 20 mm (B9) Consumption RX = 56mA, TX = 160mA  (@7V)

  • Compliant to 802.11b/g and single stream 802.11n
  • Ad-hoc and infrastructure operation modes support
  • WPA/WPA2-PSK and WEP security modes support
  • TCP protocol support
  • 7 configurable Client/Server sockets
  • Equipped with RS232 transceiver and power supply 5-28V
  • Small size
